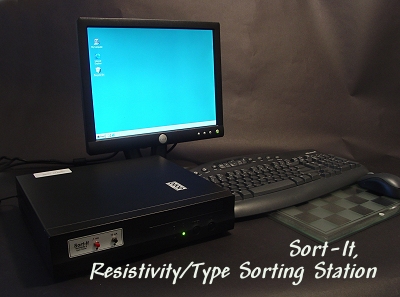

Sort-It, Computerized Resistivity/Type Sorting Station
Small form factor PC based Resistivity & Type tester
Model: ITX-PV/2677 Slim Mini ITX Case
Main board: VIA EPIA LN10000EG Fan less Mini-ITX Motherboard
System Memory: 512MB DDR2 533 PC2-4200 240-PIN MEMORY
3.5" Storage Device: 80GB 7200RPM 8MB Cache Ultra IDE Hard Drive
DC-DC Converter: Morex 60/80W 12V DC Power Converter Board, slim type
AC Adapter: Standard 60W 12V/5A AC Adapter
Operating System: Windows XP Pro
Measures Resistivity and Type of silicon wafers, ingots, and chunks with a single 4 point probe
Network & USB capable
Serial and parallel (printer) ports
Data Logging allows you to create reports-Excel compatible
Open Office Spreadsheet software included
4 Point Probe Contact Measurement System
Ergonomic probe head mounted at 45 degrees
Resistivity, Type, Sort Bin Displays
At-a-Glance Color Coded Read-Outs
Advanced Read-Out Screen
Silicon Thickness (Wafer) Compensation
Save Current Data (Screen Dump) to a file
12 bit Analog to Digital Converter
Dual Current Sources
Gain-based Conductivity Circuitry
Multi-Average Analog Measurements
.4 mA & 4 mA Switch-able Current Sources
Multiple Sort Bin Capability
External USB Desk Top Control Box
Dust Filtration Filters for PC (pc case has exhaust fans)
Dust Filtration Cover (Shop Shield) for supplied monitor (17" LCD)
Optical Scroll Mouse
Sealed Keyboard (Compact Flexible Keyboard - Washable, Waterproof, USB, PS/2)
PCC 2021 Deluxe 4 Point Probe Head with 4 spare pins
2 scales: .1 ohm cm to 125 ohm cm & .01 ohm cm to 12.5 ohm cm
Current Source Accuracy: ± 2%
A/D Converter Accuracy: ± 2%
Overall System Accuracy ± 5%
For Accurate Type Testing N/P Substrates!
